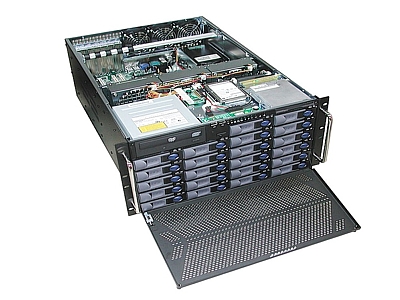

GHI-591 GUANGHSING
Features :
19" Storage Server Chassis 5U
Supports EATX B.B.(Max. to 13"x16") with Removable Drawer
Depth 650mm
1x 5.25" , 1x Slim FDD & 22x 3.5" Hot Swappable Trays & 1x 2.5" HDD & 3x 3.5" HDD (Optional)
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Color : Black (Standard), Beige or Custom
Mainboard Size : EATX B.B.(Max. to 13"x16") with Removable Drawer
CPU Type : Pentium 4, Dual Xeon, Athlon 64, Dual Opteron ,Quad Opteron
Expansion Slots : 7 Slots
Drive Bays(Open) : 1x 5.25" , 1x Slim FDD & 22x 3.5" Hot Sw
Power Supply(optional) : 1U Redundant up to 1650W ATX P/S (Rear Installation) Max. De
Drive Interface : PATA, SATA, SCSI 320, Multilane SATA Or SAS
Thermal Management Cards : GHA-CO04
|
Cooling Fan (Standard) : 3x (120mm = 90CFM ea.) Fans & 3x (80mm= 42.5CFM ea.) Fans
Front USB : 2x USB Ports
Indicators : LEDs for Power ON/OFF, HDD Activity, Fan, Temperature, Lan
Front Controls : Power ON/OFF Momentary (Dimple), System Reset, Buzzer Reset
Front Doors : Single Door With 2 Thumbscrews (Removable)
Humidity : 5% - 95% Non-condensing
|
|
| Additional Information
|
Packaging Information
Carton Width : 855 mm
Carton Height : 370 mm
Carton Depth : 610 mm
Width : 483 mm
Height : 222 mm
Depth : 650 mm
Gross Weight : 33.5 kgs
Pack CuFt : 6.8
|
|
|
|
|
