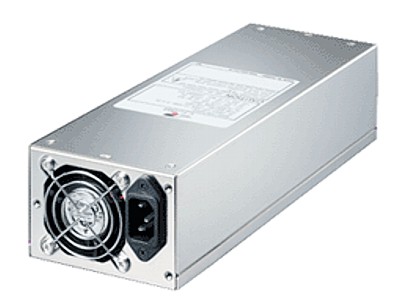

P2U-6300P ZIPPY EMACS 2U
Features :
This ZIPPY EMACS 2U Single Powersupply has:
Active PFC (full range)
12V Max. Current: 16A
EMI Noise Filter: FCC CLASS B, CISPR22 CLASS B
Safety: UL 1950, CSA 22.2 NO/ 950, TUV IEC 950
Remote on/off control
Cooling: TWO 60mm DC Fans
|
|
Description
Construction : Metal
Color : Metal
Intel Form Factor : ATX 12V ver. 2.03
Output Wattage : 300W
Input Voltage : 90 - 264 VAC
Frequency : 47 - 63Hz
Input Current : 3A - 6A
Inrush Current : 60A - 80A
PFC : Active
Efficiency : 63% Typical
CoolingFan : 1 x 60mm
+3v3V : 20A
+5V : 35A
+12V1 : 16A
-5V : 0.5A
-12V : 1A
+5Vsb : 1.5A
|
Motherboard Connector : 20pin
CPU connector : 4pin
4-Pin For Peripheral : 6
4-Pin For Floppy : 2
Cable Length : ATX 430mm / Peripherals 600mm
Over Voltage Protection : Yes
Over Current Protection : Yes
Short Circuit Protection : Yes
Built In EMI filter : Yes
MTBF : 100.000hrs
Hold-up Time : 16ms Minimum
Temperatur Range Operating : 0°C - 40°C
Humidity : 20% - 95%
Other Features : Zippy P/N B000290041
Product Application : Rackmount / Server / IPC
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
701301 | P2U-6300P | 300W ATX | EPS | APFC
|
|
Packaging Information
Carton Width : 369 mm
Carton Height : 251 mm
Carton Depth : 502 mm
Width : 100 mm
Height : 70 mm
Depth : 200 mm
Net Weight : 2.00 kgs
Gross Weight : 2.30 kgs
Carton : 10 pcs
|
|
|
|
|
