GHI-891 GUANGHSING
Features :

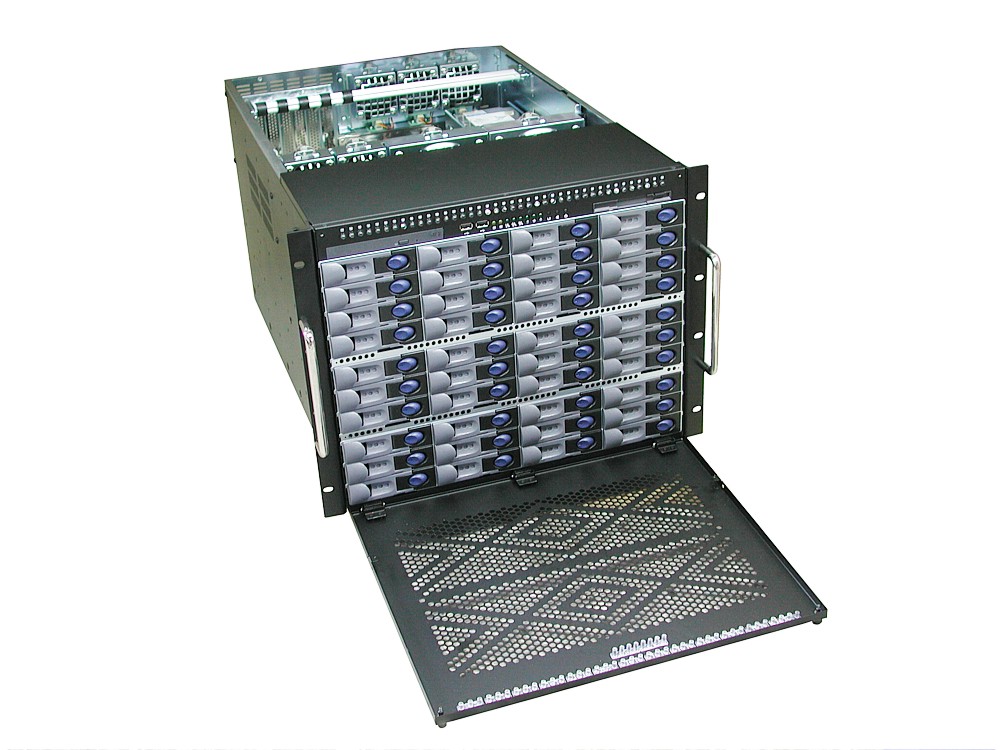

19" Rackmount Server Chassis 8U
Supports EATX M.B. (Max. to 13"x16") SSI EEB 3.0
Depth 666mm
(GHI-891-1): 1xSlim CD-ROM & 1x Slim FDD & 40x 3,5 Swappable Trays .
(GHI-891-2): 1xSlim CD-ROM & 1x Slim FDD & 40x 3,5 Swappable Trays & 1x5,25" CD-ROM & 2x3,5" HDD
(GHI-891-31): 1xSlim CD-ROM & 1x Slim FDD & 44x 3,5 Swappable Trays .
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Color : Black (Standard), Beige or Custom
Mainboard Size : EATX M/B (Max. to 13"x16") SSI EEB 3.0
CPU Type : Pentium 4, Dual Xeon, Athlon 64, Dual Opteron
Expansion Slots : 7Slot
Drive Bays(Open) : (GHI-891-1): 1xSlim CD-ROM & 1x Slim FDD & 40x 3,5
Drive Bays(Internal) : (GHI-891-2): 1xSlim CD-ROM & 1x Slim FDD & 40x 3,5 " Sw
Drive Bays(Optional) : (GHI-891-3): 1xSlim CD-ROM & 1x Slim FDD & 44x 3,5 " Sw
Power Supply(optional) : 2U Single up to 700W or 2U Redundant up to 600W or N+1 up to
Drive Interface : SATA, SCSI320, Multilane SATA or SAS
Thermal Management Cards : GHA - CO04
|
Cooling Fan (Standard) : GHI-891-1): 5x(60mm = 23.5CFM ea.) & 1x (80mm = 42.5CFM ea.)
Front USB : 2x USB Ports
Indicators : LEDs for power ON/OFF, HDD Activity
Front Controls : Power ON/OFF Momentary (Pushbutton),System Reset, Buzzer Res
Front Doors : Single Door With 2 Thmbscrews (Removable)
Humidity : 5% - 95% Non-condensing
|
|
| Additional Information
|
Packaging Information
Carton Width : 850 mm
Carton Height : 494 mm
Carton Depth : 615 mm
Width : 483 mm
Height : 354 mm
Depth : 666 mm
Gross Weight : 40.9 kgs
Pack CuFt : 9.1
|
|
|
|
|
