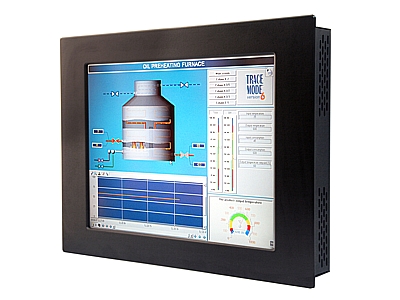

AHM-6176A Industrial Panel PC
Features :
PC Based Performance HMI
17" Industrial Panel PC, Flat Overlay Resistive touch Panel
Intel Atom D525 1.8GHz Dual Core Processors
Fanless Design. Aluminums Heat-Sink for thermal dissipation
Front panel meets IP65.Panel Mounting: VESA 75x75
Easily Accessible Storage Design
11~32V DC input with Professional Terminal Block
|
|
|
Description
Construction : Black steel front bezel,black steel back cover with aluminum
Display Size : 17" TFT-LCD
Panel Resolution : 1280x1024
Display Color : 16.7M
Brightness : 350cd/m²
Viewing Angle : H:170° / V:160°
VGA connector : 1 x DB-15 VGA
Backlight MTBF : 50,000 hrs
Mounting : VESA 75x75 Mount
Power Supply : DC 12V / DC 11~32V (option)
Temperatur Range Operating : 0~50 °C
Temperatur Range Storage : -30~60 °C
Humidity : 10~90% @40 °C non-condensing
CPU : Intel Atom D525 1.8 GHz
Memory : 1 x 204-pin SO-DIMM socket, supports DDR3 800 Mhz, default 2
Chipset : Intel ICH8M
Front Panel Protection : IP-65
HDD : 1 x 2.5" SATA HDD
|
CF Socket Optional : 1 x CF Slot (external slot for option)
Fanless : Yes
LAN : 2 x RJ-45 ports (GbE)
Serial : 2 x DB-9 RS-232; 1 x DB-9 RS-422/485
USB : 4 x USB ports Type A
Audio : 1 x Audio Line-out 3.5mm jack
Bus Expansion : None
Other Features : 1 x DC 3 Pin terminal block power input
Touch Screen : Resistive Touchscreen
Light Transmission : 80%
Driver OS support : Windows CE 6.0, XP Pro, XP Embedded, Windows Embedded Standa
|
|
