GHI-283/283V GUANGHSING
Features :

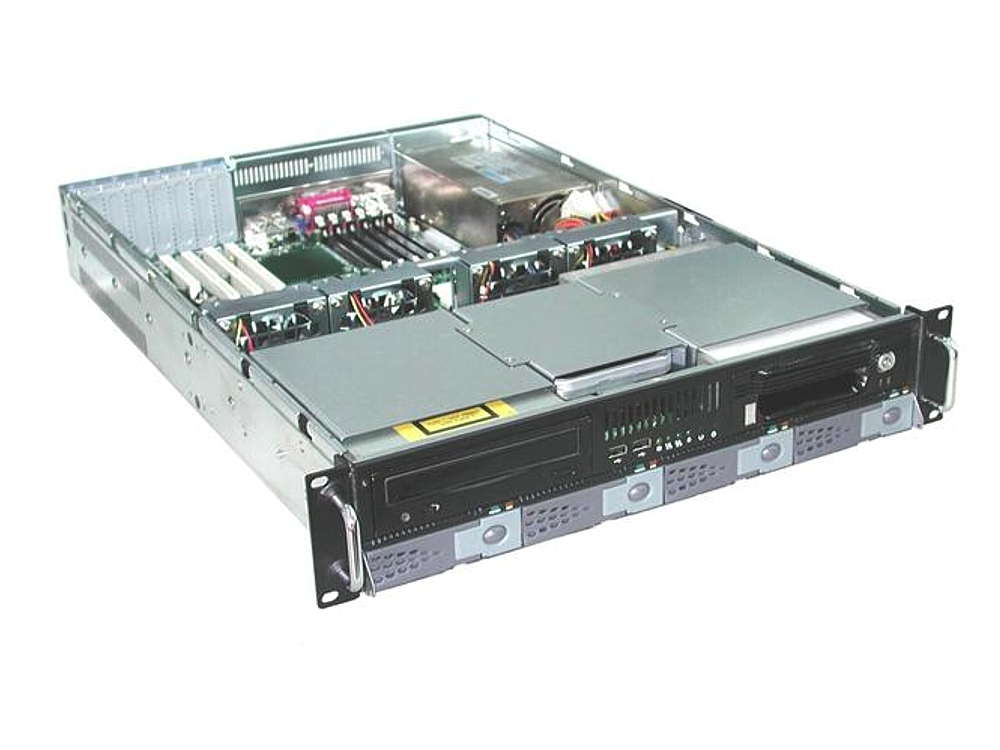

This GUANGHSING 19" Rackmount Industrial Computer Chassis - 2U has 2x5,25", 1 x 3,5" and 4x3,5" swappable trays
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Color : Black
Mainboard Size : 12"x13"
CPU Type : Dual Xeon, P4, Athlon64, Dual Opteron
Drive Bays(Open) : 2x5,25"&1x3.5"& 4xSwappable trays
Power Supply(optional) : 2U Single or 2 U Redundant
Riser Card : Optional 32bit/64bit /AGP/PCIe
|
Cooling Fan (Standard) : 4x(80mm)
Cooling Fan (Optional) : 1x80mm Blower FC-200
Front USB : 2x
Indicators : LEDs for Power ON/OFF, LAN,HDD Activity,Fan,Temp.
Front Controls : Power ON/OFF, Fan Alarm and System Reset,
Front Doors : Single Door with 2 Thumbscrews
Humidity : 5%-95% Non-Condensing
Product Application : RAID Server, File Server, etc.
Optional Accessories : GHA-SL26 Slide Rails
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
5000036 | GHI-283SX-IDE | 12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black
5000038 | GHI-283SX-MS212"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black |
5001283 | GHI-283SX-SAS | 12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black
5000037 | GHI-283SX-SATA | 12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black
5000039 | GHI-283SX-SCA | 12"x13" M.B | max. 3x Horizontal ISA/PCI/AGP | black
5000040 | GHI-283V-IDE | 12"x13" M.B | 7x Low Profile Slots | black
5000042 | GHI-283V-MS212"x13" M.B | 7x Low Profile Slots | black |
5002283 | GHI-283V-SAS12"x13" M.B | 7x Low Profile Slots | black |
5000041 | GHI-283V-SATA12"x13" M.B | 7x Low Profile Slots | black |
5000043 | GHI-283V-SCA12"x13" M.B | 7x Low Profile Slots | black |
5000044 | GHI-283WV-12"x13" M.B | 6xHorizontal Slots | black |
5000046 | GHI-283WV-MS2 | 12"x13" M.B | 6xHorizontal Slots | black
5003283 | GHI-283WV-SAS | 12"x13" M.B | 6xHorizontal Slots | black
5000045 | GHI-283WV-SATA | 12"x13" M.B | 6xHorizontal Slots | black
5000047 | GHI-283WV-SCA | 12"x13" M.B | 6xHorizontal Slots | black
|
|
Packaging Information
Carton Width : 588 mm
Carton Height : 255 mm
Carton Depth : 825 mm
Width : 483 mm
Height : 88 mm
Depth : 650 mm
Gross Weight : 18.50 kgs
Pack CuFt : 4.4
Pallet : 14 pcs
Carton : 1 pcs
|
