GHI-289 GUANGHSING
Features :

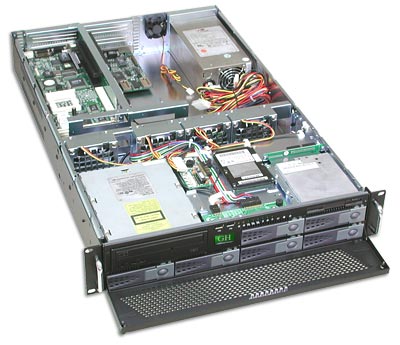

19" Rackmount Chassis 2U
Support 6-Slot Passive Backplane
Depth 696mm
1x5,25"&1xSlim FDD&6x3,5"Swappable Trays&1x2,5"HDD
Drive Interface: IDE,SATA,SCA or SAS
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Expansion Slots : 6-Slot Passive Backplane
Drive Bays(Open) : 1x5,25", 1xSlim FDD, 6x3,5" swappable tr
Drive Bays(Internal) : 1x2,5
Power Supply(optional) : 2U Single or 2U Redundant
Drive Interface : IDE, SATA, SCA or SAS
Thermal Management Cards : GHA-CO04
|
Cooling Fan (Standard) : 4x(80mm)&1(40mm)
Front USB : 2x
Indicators : LEDs for Power ON/OFF, 2xLAN,3xHDD Activity,Fan,Te
Front Controls : Power ON/OFF, System Reset
Front Doors : Single Door with 2 Thumbscrews
Humidity : 5%-95% Non-Condensing
Product Application : Web server, High-End Workstation
Optional Accessories : 6-Slot Passive Backplane/Slide Rails SL-26,
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
5000048 | GHI-289SX-IDE | for 6-slot Passive Backplane | without P.S. | black
5001289 | GHI-289SX-SAS | for 6-slot Passive Backplane | without P.S. | black
500289 | GHI-289SX-SATA | for 6-slot Passive Backplane | without P.S. | black
5000049 | GHI-289SX-SCA | for 6-slot Passive Backplane | without P.S. | black
|
|
Packaging Information
Carton Width : 595 mm
Carton Height : 255 mm
Carton Depth : 861 mm
Width : 483 mm
Height : 88 mm
Depth : 696 mm
Gross Weight : 18.50 kgs
Pack CuFt : 4.4
Pallet : 14 pcs
Carton : 1 pcs
|
|
|
|
|
