AT-OP08
Features :

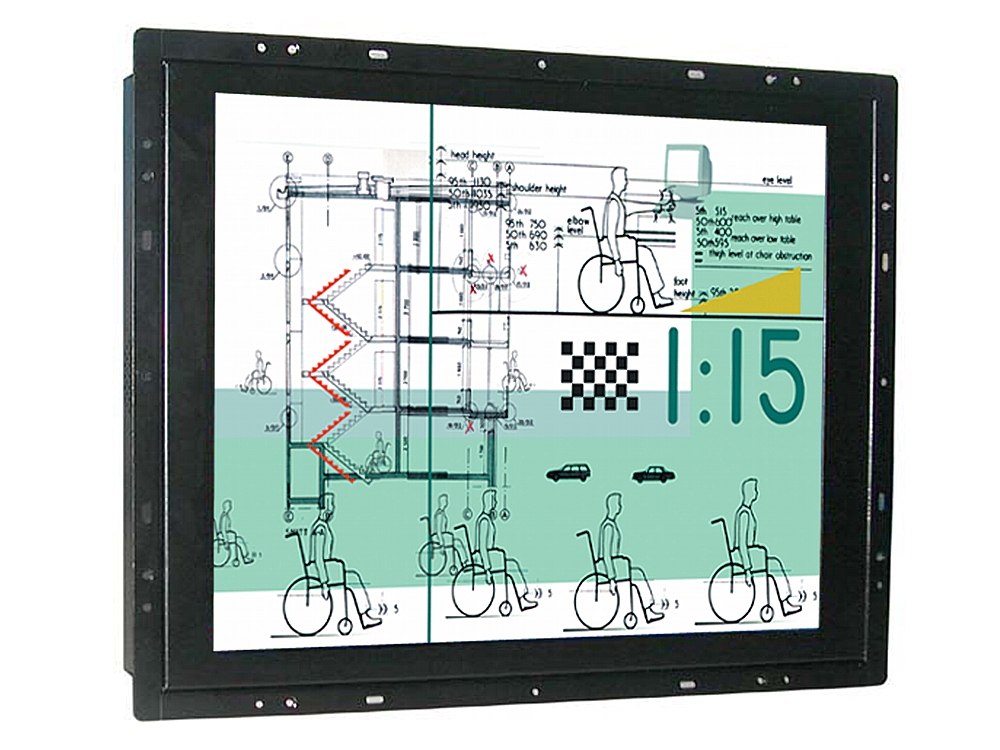

8" Open frame LCD monitors are bare metal framed monitors with different form factors including metal / plastic housing, touch screens, digital / analogue / video inputs jacks and water/dust resistant IP standard, and tempered glass. Premier-Industrial produces a wide range of various panel sizes including 8" , 10.4" , 12.1" , 15" , 17" and 19" for the industrial segment.
|
|
Description
Construction : Heavy Duty Steel
Display Size : 8"
Panel Resolution : 640 x 480
Display Color : 262k
Brightness : 320cd/m²
Contrast Ratio : 300:1
Pixel Pitch : 0.2535 x 0.2535mm
Viewing Angle : L/R: -55° ~ +55°; U/D: -40° ~ +40°
OSD control : Yes
VGA connector : 15pin D-Sub
Video Input : AV optional
Touch Screen Optional : Yes
Backlight MTBF : 20.000
Power Supply : External 48W DC 12V power adapter
|
Temperatur Range Operating : 0° ~ 45°C
Temperatur Range Storage : -20° ~ 60°
Humidity : 20% ~ 80%
Other Features : DVI optional
TouchScreen : optional
Type : resistive
Controller Interface : RS-232, USB optional
Touch Lifetime : 100 million times
Driver OS support : MS DOS, Win 98/SE,Win NT4.0,Win 2000, Win XP
|
|
| Additional Information
|
|
|
|
|
|
