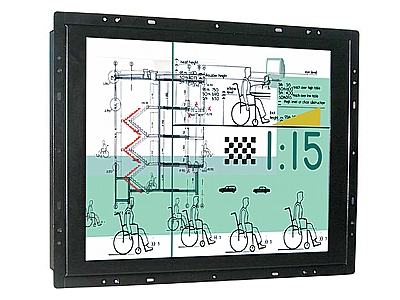

AT-OP15
Features :
15" Open frame LCD monitors are bare metal framed monitors with different form factors including metal/plastic housing, touch screens, digital/analogue/video inputs jacks and water/dust resistant IP standard, and tempered glass. Premier-Industrial produces a wide range of various panel sizes including 6.4", 10.4",12.1", 15", 17", 19" and 26" even the enormous 40" for the POI market as well as for the industrial segment.
|
|
|
Description
Construction : Open Frame structure with strengthened glass
Display Size : 15" TFT Active Matrix Panel
Panel Resolution : 1024 x 768
Display Color : 16M colors
Brightness : 250cd/m 2 Max.
Contrast Ratio : 500 : 1
Pixel Pitch : 0.297x 0.297mm
Viewing Angle : +65° ~ -65° (H) , +45° ~ -55° (V)
OSD control : Brightness, Contrast, H / V Position, Color, Phase, Clock, M
VGA connector : 15 Pin mini D-SUB
Video Input : AV connector ( optional )
Touch Screen Optional : Yes
Backlight MTBF : 50,000 hrs
Power Supply : External power adapter
AC Input Voltage : 110V - 220V AC input
|
DCoutput Voltage : 48W DC 12V
Temperatur Range Operating : 0°C to 45°C ( 32°F~ 113°F )
Temperatur Range Storage : -20°C to 60°C ( -4°F~ 140°F )
Humidity : 10% to 95%@ 40°C, non-condensing,
Shock : 30G peak acceleration ( 11ms duration)
TouchScreen : Optional
Type : Analog resistive
Resolution : continuous
Light Transmission : 79% or more
Controller Interface : RS-232 interface ( or USB option)
Touch Lifetime : 100 million times
Driver OS support : windows 98 / NT / 2000 / ME / XP
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
580015 | A-OP15 | 15" | Open Frame Monitor |
580115 | A-OP15T | 15" | Open Frame Monitor | Touchscreen
580215 | A-OP15T-USB | 15" Open Frame Monitor | Touchscreen | USB
|
|
Packaging Information
Width : 378 mm
Height : 295 mm
Depth : 50 mm
Gross Weight : 8 kgs
Pallet : 32 pcs
Carton : 2 pcs
|
|
|
|
|
