GHI-182 GUANGHSING
Features :

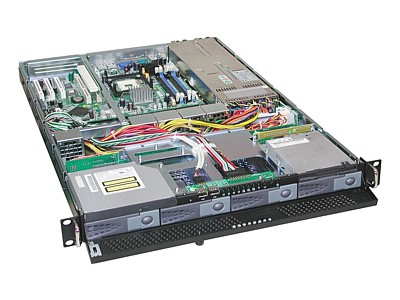

This GUANGHSING 19" Rackmount Industrial Computer Chassis - 1U Supports EATX M.B max. 12" x 13"
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Color : Black (Standard), Beige or Custom
Mainboard Size : 12" x 13"
CPU Type : Dual Xeon , P4 , Dual Pentium III , Dual Opteron
Expansion Slots : 1 x Horizontal PCI Slot
Drive Bays(Open) : 1x Slim CD-ROM & 1x Slim FDD & 4x 3.5"Swappab
Power Supply(optional) : 1U Redundant up to 400W ATX PS (Rear Instalation)
Riser Card : Please Check Page 203-204 For Optional 1U Riser Card
Drive Interface : PATA, SATA; SCSI320, Miltilana SATA or SAS
|
Cooling Fan (Standard) : 5 x (40 x 28mm = 15.3CFM ea)
Air Filter : None
Front USB : 2x USB Ports
Indicators : LEDs for Power ON / OFF , LAN , HDD Activity
Front Controls : Power ON / OFF, System Reset, Buzzer Reset
Front Doors : Single Door With 1 Thumbscrew
Humidity : 5% - 95% Non - Condensing
Product Application : Web Server , High-End Workstation
Optional Accessories : Slide rails SL-24
|
|
| Additional Information
|
Packaging Information
Carton Width : 594 mm
Carton Height : 182 mm
Carton Depth : 818 mm
Width : 483 mm
Height : 44 mm
Depth : 650 mm
Gross Weight : 12.80 kgs
Pack CuFt : 2.9
Pallet : 20 pcs
Carton : 1 pcs
|
