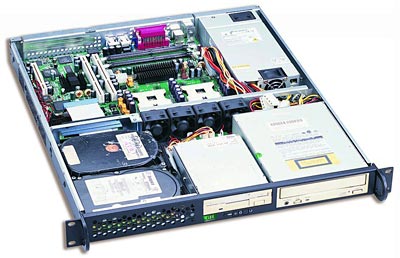

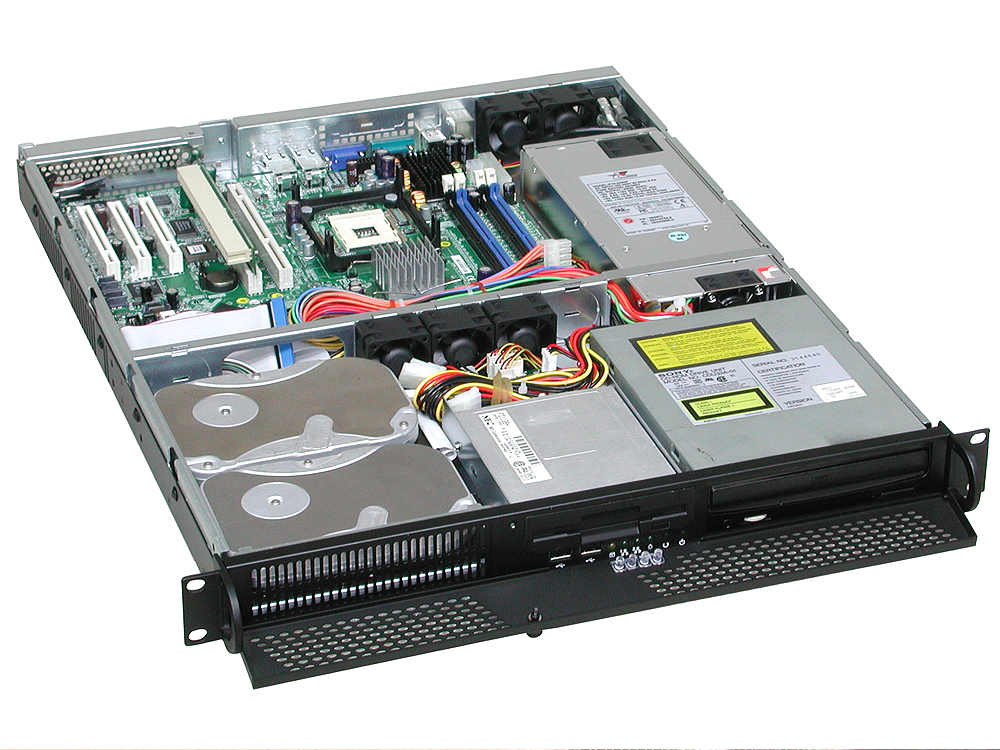

GHI-105/105DX GUANGHSING
Features :
1U Rackmount Chassis
Supports ATX M.B. max. 12"x10.5"
Depth 542mm
1x5.25"&1x3.5"&2x3.5" or 2x5.25"&1x3.5
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
Color : Black
Mainboard Size : 12"x10.5"
CPU Type : Dual Xeon, P4,Athlon 64, Opteron
Expansion Slots : 1xHorizontal PCI Slot
Power Supply(optional) : 1U Single up to 500W P/S
Riser Card : Optional
|
Cooling Fan (Standard) : 5x40mm
Front USB : 2x
Indicators : LEDs Power ON/OFF, HDD activity
Front Controls : Power ON/OFF, System Reset
Front Doors : Single door with 1 Thumbscrew
Humidity : 5%-95% Non-condensing
Product Application : VPN Gateway, Cluster Server,etc.
Optional Accessories : Riser Cards,Slide Rails GHA-SL24
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
GHI-105DX | 1x5.25"&1x3.5"&2x3.5" | 5x(40x28mm)Fans | black |
GHI-105SX | 2x5.25"&1x3.5" | 3x(40x20mm)& 2x(40x28mm)Fans | black |
|
|
Packaging Information
Carton Width : 685 mm
Carton Height : 185 mm
Carton Depth : 573 mm
Width : 483 mm
Height : 44 mm
Depth : 542 mm
Gross Weight : 14.00 kgs
Pack CuFt : 2.6
Pallet : 18 pcs
Carton : 1 pcs
|
|
|
|
|
