GHI-280/280V GUANGHSING
Features :

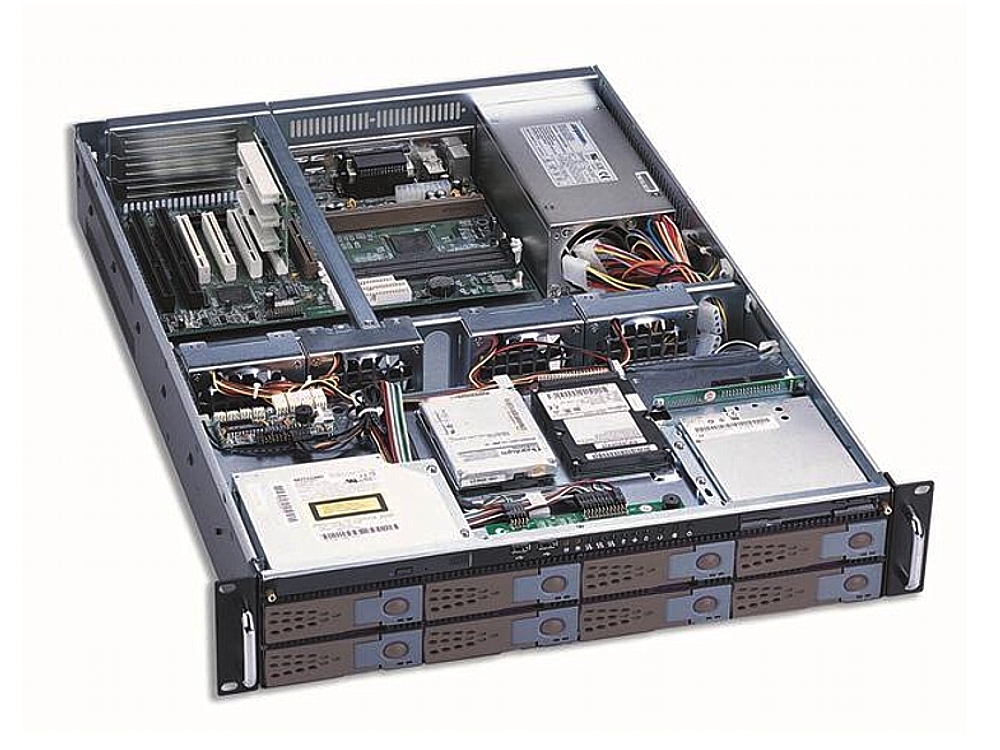

This GUANGHSING 19" Rackmount Industrial Computer Chassis - 2U has 8 swappable drive bays
|
|
|
Description
Construction : Heavy Duty Cold Rolled Electroplated Steel
CPU Type : Dual Xeon, P4 , Athlon64 , Dual Opteron
Drive Bays(Open) : 1 Slim CD-ROM & 1 x Slim FDD & 8 x 3.5" Swapp
Drive Bays(Internal) : 2 x 2.5" HDD
Drive Bays(Optional) : 1 x 3.5" HDD
Power Supply(optional) : 2U Single/Redundant up to 510W
Thermal Management Cards : GHA-CO04
|
Cooling Fan (Standard) : 4 x 80mm
Cooling Fan (Optional) : 1 x 80mm Blower FC-200
Front USB : 2
Indicators : LEDs for Power ON / OFF, LAN , HDD Activity , Fan , Temp.
Front Controls : Power ON / OFF, System Reset , Buzzer Reset
Front Doors : Single Door with 2 Thumbscrews
Humidity : 5% - 95% Non - Condensing
Product Application : Web server , High-End Workstation
Optional Accessories : GHA-SL26 Slide Rails
|
|
| Additional Information
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
5000014 | GHI-280SV-IDE | 12" x 13" M.B | 7 x Low Profile Slots | black
5000017 | GHI-280SV-MS2 | 12" x 13" M.B | 7 x Low Profile Slots | black
5000500 | GHI-280SV-SAS | 12" x 13" M.B | 7x Low Profile Slots | black
5000016 | GHI-280SV-SATA | 12" x 13" M.B | 7x Low Profile Slots | black
5000015 | GHI-280SV-SCA | 12" x 13" M.B | 7x Low Profile Slots | black
500281 | GHI-280SX-IDE | 12" x 13" M.B | max. 3x Horizontal ISA/PCI/AGP | black
540280 | GHI-280SX-MS2 | 12" x 13" M.B | max. 3 x Horizontal ISA / PCI / AGP | black
5000501 | GHI-280SX-SAS | 12" x 13" M.B | max. 3 x Horizontal ISA / PCI / AGP | black
501280 | GHI-280SX-SATA | 12" x 13" M.B | max. 3 x Horizontal ISA / PCI / AGP | black
530280 | GHI-280SX-SCA | 12" x 13" M.B | max. 3 x Horizontal ISA / PCI / AGP | black
5000018 | GHI-280WV-IDE | 12" x 13" M.B | 6 x Horizontal Slots | black
5000021 | GHI-280WV-MS2 | 12" x 13" M.B | 6 x Horizontal Slots | black
5000502 | GHI-280WV-SAS | 12" x 13" M.B | 6 x Horizontal Slots | black
5000020 | GHI-280WV-SATA | 12" x 13" M.B | 6 x Horizontal Slots | black
5000019 | GHI-280WV-SCA | 12" x 13" M.B | 6 x Horizontal Slots | black
|
|
Packaging Information
Carton Width : 588 mm
Carton Height : 255 mm
Carton Depth : 825 mm
Width : 483 mm
Height : 88 mm
Depth : 650 mm
Gross Weight : 18.50 kgs
Pack CuFt : 4.4
Pallet : 14 pcs
Carton : 1 pcs
|
