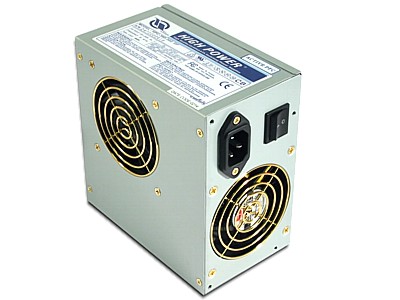

HPC-420-302DF
Features :
Two fans design to form the best pull and push air-flow effect.
Designed for ultimate silence performance.
Active PFC provides higher power efficiency
|
|
Description
Construction : Metal
Color : Metal
Intel Form Factor : ATX 12V ver.2.0
Output Wattage : 420W
Input Voltage : 100 - 240VAC
Frequency : 50 - 60Hz
PFC : Active
Noise : 19dBA
Switch : ON / OFF
Cooling Fan : 2 x 80mm Fans Ball Bearing
+3.3V : 30A
+5V : 40A
+12V1 : 15A
+12V2 : 18A
-5V : 0.3A
-12V : 0.8A
+5Vsb : 2A
Dual +12V Output : Yes
Motherboard Connector : 20 / 24pin
|
CPU Connector : 4pin
Connector S-ATA : 2
4Pin For Peripheral : 9
4Pin for Floppy : 2
S-ATA : Yes
Auxiliary Connector : 2pin for PSU Fan Control
HDD Quick Mount Connector : Yes
All output Cables : Nylon Sleeve on ATX Cable
Cable Length : ATX 500mm / Peripherals 1000mm
Support SLI : Yes
Over Voltage Protection : Yes
Over Current Protection : Yes
Short Circuit Protection : Ys
MTBF : 100.000hrs
Hold-Up Time : 16ms Minimum
Temperatur Range Operating : 10°C to 50°C
Temperatur Range Storage : -40C - 60C
Humidity : 20% - 90%
Product Application : Personal Computer / SOHO Server
|
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
701420 | HPC-420-302DF | 420W ATX APFC | 2 x 80mm Fan |
|
|
Packaging Information
Carton Width : 410 mm
Carton Height : 270 mm
Carton Depth : 500 mm
Width : 150 mm
Height : 86 mm
Depth : 140 mm
Net Weight : 15.00 kgs
Gross Weight : 16.00 kgs
Pack CuFt : 2.12
Carton : 10 pcs
|
|
|
|
|
