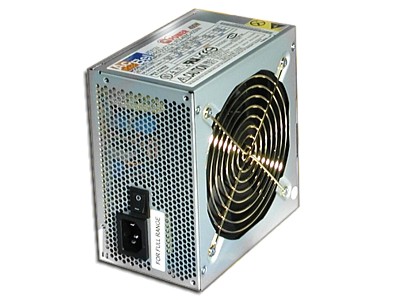

AP14PC01-Z2L
Features :
120mm Fan
Dual Rails Output
Active PFC
18 dB Super Low Noise
Intelligent and user-friendly plug design
Quality assured by international leading brands
|
|
Description
Construction : Metal
Color : Metal
Intel Form Factor : ATX 12V ver. 2.0
Output Wattage : 400W
Input Voltage : 100 - 240VAC
Frequency : 50 - 60Hz
PFC : Active
Noise : 18dBA
Switch : ON / OFF
Cooling Fan : 1 x 120mm Sleeve Bearing
+3.3V : 30A
+5V : 30A
+12V1 : 18A
+12V2 : 16A
-5V : n.a
-12V : 1A
+5Vsb : 2A
Dual +12V Output : Yes
Motherboard Connector : 24pin (Adaptor for 20pin )
|
CPU Connector : 4pin + 8pin
Connector S-ATA : 2
4Pin For Peripheral : 6
4Pin for Floppy : 2
S-ATA : Yes
HDD Quick Mount Connector : Yes
All output Cables : Nylon Sleeve on ATX Cable
Cable Length : 500mm
Over Voltage Protection : Yes
Over Current Protection : Yes
Short Circuit Protection : Yes
MTBF : 100.000hrs
Hold-Up Time : 16ms Minimum
Product Application : Personal Computer / SOHO Server
|
|
Ordering Information
Use all benefits that a registration as a PREMIER Partner offers!
After completing the registration process you will be able to add Items to your personal Notepad and - if you wish - send your inquiry to our sales staff.
714012 | AP14PC01-Z2L | 400W ATX | Active PFC | 120mm Fan
|
|
Packaging Information
Carton Width : 480 mm
Carton Height : 170 mm
Carton Depth : 575 mm
Width : 150 mm
Height : 86 mm
Depth : 140 mm
Net Weight : 2 kgs
Gross Weight : 2.1 kgs
Pack CuFt : 1.77
Pallet : 160 pcs
Carton : 8 pcs
|
|
|
|
|
